Poe Wiring Diagram For Cameras

November 25, 2024 Post a Comment

Poe wiring diagram for cameras

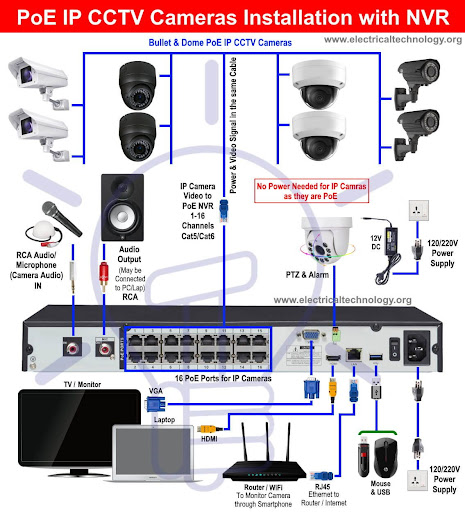

Simply connect a camera to an on-premise network PoE switch with an Ethernet cable, and plug the NVR into a network switch. Network switches come with multiple PoE ports, enabling you to set up and power four or more cameras from one device. PoE camera systems reduce cabling and streamline operations.

How many wires does PoE camera use?

So to get your camera set up on your network, all you have to do is connect it to your router or to a switch with an Ethernet cable. So there you go. Two cables.

Can I running 2 PoE cameras on one cable?

This cable splitter set will make your installation much easier, as you only need one cable run from your PoE switch to power two cameras! With simple plug-n-play installation, the splitter/combiner works with all standard 802.3af/at POE switches.

What wires do PoE cameras use?

POE requires special wiring. Not at all, the same cabling - Cat 5e, Cat 6, etc - and "RJ45"-style connectors are used for both regular and PoE-enabled local area networks. Power is forced into devices.

Why do PoE cameras have a power cord?

As the camera has a POE system, which means the RJ45 Ethernet port can be used to transfer power and video signal. The power cord is a spare one in case you need to plug the camera to a power source in certain circumstance.

How do I install PoE cameras?

With a PoE IP camera switch, you only need to plug the Ethernet cable of all the cameras with PoE into the switch, connect the PoE switch to the router, and then power the system up.

How many pairs does a PoE camera need?

PoE uses two pairs to transmit power supply. For fast Ethernet, both data and power supply will transmit over the same two pairs UTP (check Figure 1).

What voltage is a PoE camera?

Two PoE options are available. Standard PoE provides a maximum of 12.95 watts at the device with a working voltage range that's between 37 and 57 volts DC. Then there is a higher specification PoE plus, often written PoE+, that provides 25.5 watts at a voltage between 42.5 and 57 volts at the camera.

How many wires does a IP camera need?

When wiring up an IP camera, or any other IP device for that matter, you must use a CAT 5 data cable containing 4 pairs of wires. Each pair consists of a solid coloured wire and a strip of the same colour on a white background.

Can I use Cat6 for PoE cameras?

All four HD PoE cameras can be powered by one single Cat5/6 Ethernet network cable.

Can you daisy chain PoE cameras?

POE IP cameras can utilize POE switches for a similar effect. Up to thirty-two Analog PTZ cameras can be daisy-chained for up to a maximum of 4,000 feet.

Can a PoE cable be split?

PoE splitters are the devices that are used together with PoE switches and PoE injectors. Instead of taking both data input and power input and turning them into a singular output, they supply power by splitting the power from the data and feeding it to a separate input that a non-PoE compliant device can use.

Which pins provide power on PoE?

What wire pairs are used for Power over Ethernet (PoE)? An Ethernet cable has eight wires. The blue and white/blue wires (pins 4 and 5) are used for the positive voltage (V+), and the negative voltage (V-) uses white/brown and brown wires (pins 7 & 8 on the RJ45 plug).

Do I need special cable for PoE?

PoE does not require any special wiring, it uses the same ethernet cables – Cat 5e, Cat 6, etc - and the "RJ45" connectors that are used for regular local area networks. Standard Ethernet cables - Cat 5e (or better) consist of four twisted pairs of cable, and PoE sends power over these pairs to devices.

Is PoE AC or DC?

What Does that Mean for PoE? Per IEEE standards, PoE is injected into a cable at voltage between 44 and 57V DC, typically 48V DC.

Do PoE cameras need 12v?

The DC12V connector is only necessary if you are not using PoE. If you have a PoE NVR or PoE Switch you can ignore and tuck this cable away. Do not cut this off as doing so will void your warranty.

Can I plug PoE camera into router?

PoE (Power over Ethernet) means you can just use a single network cable for both video and power transmission. So just connect the camera to the router via the network cable, and the camera will get power supply and network access.

How far can you run PoE cameras?

Direct runs from an NVR's POE port to a camera can go up to 300 feet without any issues. If a run exceeds this length POE Extenders can be used for a total of 900 feet (max of two POE extenders 300 feet apart). The POE extenders do not require a separate power source. They will need to be protected if used outdoors.

Does PoE camera need Internet?

Reolink PoE cameras and NVR can work without the internet, but the functions supported may be limited. You need to use an Ethernet cable to directly connect your PoE camera to your computer. You may follow this article to know how to access PoE cameras and NVR without the internet by connecting your devices directly.

Do I need a PoE switch with an NVR?

NVR without Power over Ethernet means it has no Ethernet ports on the back panel, so it can not be connected to IP cameras directly, which requires an external PoE switch or a power adapter to provide power to each IP camera.
