Why Does A Capacitor Block Dc But Pass Ac

September 18, 2024 Post a Comment

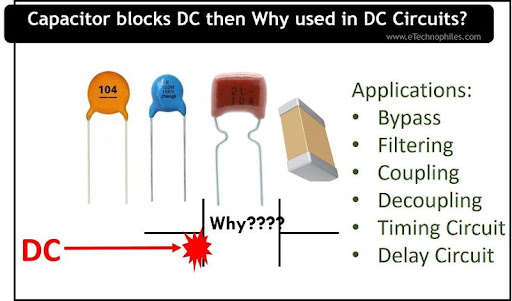

Why does a capacitor block dc but pass ac

As soon as the power source fully charges the capacitor, DC current no longer flows through it. Because the capacitor's electrode plates are separated by an insulator (air or a dielectric), no DC current can flow unless the insulation disintegrates. In other words, a capacitor blocks DC current.

Why does AC current pass through a capacitor?

Thus the electrons flow in one direction while charging the capacitor and its direction is reversed while discharging (the conventional current is also opposite in both cases). Though electrons flow in the circuit, no electron crosses the gap between the plates. In this way, AC flows through a capacitor.

Why does an inductor allow DC to pass but does not allow AC to pass?

So, as the inductive reactance is zero it will not oppose the flow of current. So the inductor passes the DC current, of course, it will offer very small resistance to the flow of current which depends upon the internal resistance of the inductor material.

Why there is no frequency in DC?

Frequency of direct current (DC) is zero because the flow of current is unidirectional here. There is no scope for a reverse in direction and the frequency of direct current (DC) always remains zero.

Do capacitors block AC or DC?

The capacitor blocks DC because there is no electrical connection between the 2 electrodes; rather there is a vacuum or an insulator.

What happens when capacitor is connected to AC?

When a capacitor is linked with an AC circuit, it will consecutively charge and discharge at a rate calculated by the frequency of the supply. In AC circuits, capacitance varies with frequency as the capacitor is being charged and discharged constantly.

What happens when capacitor connected to DC?

When capacitor is connected to dc voltage source, capacitor starts the process of acquiring a charge. This will built up voltage across capacitor. Once capacitor has acquire enough charge, current starts flowing and soon capacitor voltage reaches at value approximately equal to dc source voltage.

Why a capacitor blocks DC and inductor offers an easy flow?

Complete answer: The frequency of AC determines the number of times of direction change. In the case of DC since it doesn't change its direction frequency always remains zero. , capacitor reactance will be infinite. Thus the capacitor will not allow the flow of DC.

Why does capacitor block DC whereas an inductor allows easy path to it?

Why does a capacitor block DC whereas an inductor allows DC to pass through it easily ? UPLOAD PHOTO AND GET THE ANSWER NOW! Solution : As frequency of DC , V = 0 <br> For a capacitor, `X_(C) = (1)/(2 pi v C)` , therefore, `X_(C)` = capacitive reactance = `infty`. Hence, a capacitor blocks DC.

Why does pure inductor pass DC and block AC of high frequency?

Answer: An inductor blocks AC while allowing DC because it resists a change in current. The equation of an inductor is ... If you apply DC across an inductor, it will stabilize to some current flow based on the maximum current available from the current / voltage source.

Does DC have infinite frequency?

Originally Answered: Does DC has infinite frequency or zero frequency? DC has zero frequency. DC is constant. And frequency indicates the number of times there has been a vibration in the signal.

How many Hz is DC voltage?

The frequency of direct current (DC) is 0 Hz, as the current only flows in one direction.

Why skin effect does not occur in DC?

Skin effect is caused by the back emf produced by the self induced magnetic flux in a conductor. For a DC current, the rate of change of flus is zero, so there is no back emf due to changes in magnetic flux. ...

Why are capacitors open in DC?

For a capacitor (of any size) to have a pure DC voltage across it, that voltage must have always been there. If the voltage has always been there then the capacitor must already be charged, so no current flows and it is effectively open circuit!

What blocks AC and passes DC?

“A capacitor blocks ac, but allows dc to pass”.

Do capacitors allow current to flow?

Even though a capacitor has an internal insulator, and that's going to be right here, current can flow through the external circuit as long as the capacitor is charging and discharging, so as long as it's charging and discharging current can flow.

What is the role of capacitor in AC and DC circuit?

Capacitor stores charge during the time of DC circuit and changes polarity at the time of the AC circuit.

How does a capacitor reduce AC voltage?

To reduce the 220V AC, an X-rated capacitor of 0.1 uF 400 V rating is used in series with the phase line. The resistor R1 of 200 k ohms and 1 W power rating is connected parallel with the capacitor. The resistor R1 is a bleeder resistor which is used for safety purpose.

Can capacitor work DC?

A capacitor works in AC as well as DC circuits. It allows AC current to pass as it's polarity keep on changing while behaves as open circuit in DC current after getting full charged.

Can you connect a capacitor directly to a DC source?

When capacitors are connected across a direct current DC supply voltage, their plates charge-up until the voltage value across the capacitor is equal to that of the externally applied voltage.
