Hvac ductwork symbols

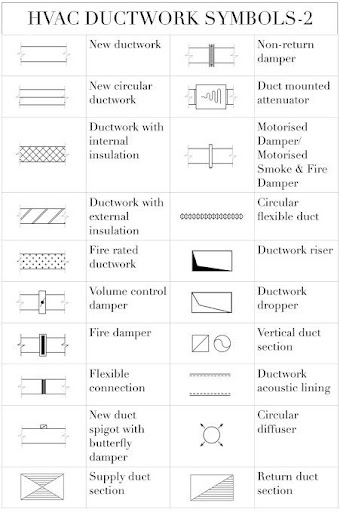

An “X” in a square or round shape is indicative of Supply Air, while a single Diagonal line indicates return air. The following symbols indicate the type of air but also that of a riser duct. A riser duct is one that penetrates a floor.

What are the levers on ductwork for?

The second are the small levers located on the round branch ducts. These levers can be adjusted to regulate air flow closer to the source. If the lever is parallel to the pipe, the damper is open. If the lever is perpendicular to the pipe the damper is shut, and there is a varying degree of settings in between.

What are the three types of ducts?

There are three main types of ducting used within domestic ventilation systems: rigid ducting, semi-rigid ducting and flexible ducting.

Is duct ID or OD?

The diameter is a very important unit of measurement when it comes to flexible duct sizing because all duct sizes are measured according to their diameters. Flexible ducting is normally sized according to the internal (or inside) diameter, often labeled as ID.

How can you tell the difference between supply and return ductwork?

To identify a return vent, take a piece of paper and hold it up to the vent. If the paper is drawn towards the vent, then it's a return vent. Return vents are usually larger than supply vents, and they usually don't have adjustable slats to direct airflow since the air is going into the ducts instead of out.

How do you know which ducts are supply and return?

Supply vents are usually found high up on the walls in your home, or on the ceiling. Return Vents: These air vents suck air from the rooms in your home back into your HVAC system. They are typically larger in size than supply vents and you will not feel air blowing out of them.

How do I know if my duct damper is open or closed?

If you are looking at a duct that is coming off the furnace and going straight up like it is going to the upstairs, and the wing is in the same direction as the duct, it is open. If the wing is in the opposite or vertical position to the ductwork, then the damper is closed.

How do you adjust airflow in ductwork?

Once you access the trunkline, you will find the damper lever, which is attached directly to the duct. To adjust the damper lever, you will need to turn it to the left or right. If you want to close the damper, you will need to turn the damper lever in the opposite direction of the duct.

How do you adjust air flow in ductwork?

Change the direction of airflow within a duct line by turning the valve or lever on the manual control. The direction of the valve handle determines the amount of conditioned air each zone receives. Turning the handle to a position parallel with the duct line will open the damper completely.

What is the difference between a vent and a duct?

The purpose of an air duct network is to guide the air that enters through the air vents to the main heating or cooling component of your central air unit. In addition, the air ducts also help guide air that has been heated or cooled back out of the air vents throughout the home.

What is the most common type of duct?

Sheet metal is the most common type out of the four ductwork materials. It's very durable, protects the ducts from dirt and dust and is easy to clean and maintain. Sheet metal is made of galvanized steel or aluminum. It's hard and thick and is known to have a smooth surface.

What are HVAC ducts called?

There are three main types of rigid ductwork: sheet metal ducts, fiberglass lined ducts, and fiberboard ducts. Sheet Metal Ducts: Sheet metal ducts are usually made of either galvanized steel or aluminum. Aluminum ducts are lightweight and very easy to install.

How many CFM is a 20x20 duct?

Duct Size (Inches)	Metal Duct Airflow (CFM)
14 inches	750 CFM
16 inches	1,200 CFM
18 inches	1,500 CFM
20 inches	2,000 CFM

How do you read duct size?

If you have round ducts, you simply measure the diameter (D) of the duct (the cross-section). This will tell you what size duct to purchase to replace it. If you have rectangular or square ducts, measure the width (W) and height (H) of the duct and use these figures when buying new parts.

What does TDF stand for duct?

Lockformer came out first with a TDC Rollformer (Transverse Duct Connector) and then Engel followed with their TDF Rollformer (Transverse Duct Flange).

Do you need a return duct in every room?

Having several return vents (ideally one in every room, but even two or three is better than just one) creates consistent air pressure. If you have one return vent, your home is fine. Keep the doors to each room open so air can properly circulate.

Why is there two air vents in my room?

If your home has central heating and cooling, you'll notice two types of vents on your walls. Supply vents: These are the vents that blow air into each room. The conditioned air goes from your air conditioner or furnace, travels through the ductwork and exits out the supply vents.

Does every air return need a filter?

In general, it is recommended to have an air filter in every return vent (as long as you choose the one of the right size and thickness). The filters will improve the air quality in your house and will protect the HVAC equipment from dust, pollen, pet dander, and hair.

Which way should air ducts face?

What's The Right Furnace Filter Direction? If you are looking at a furnace filter, find the arrow that indicates the proper air flow direction. That arrow must always face toward the furnace and away from the return duct that carries the air in need of heating or cooling.
